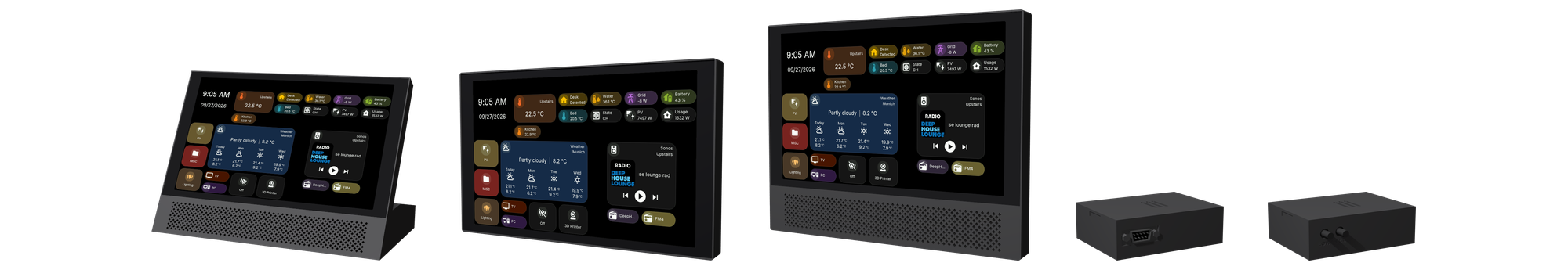

Two Panels, Three Styles
Desktop, Basic Inwalls and Inwalls with Voice Assist, audio and presence sensing.

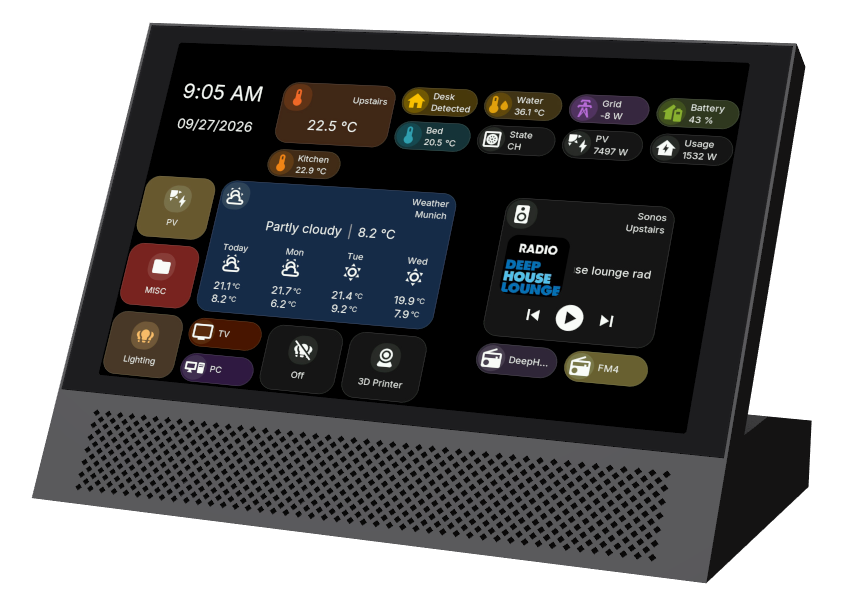

8 Inch Desktop Panel
Features a Waveshare 8 inch DSI touch display and an ESP32-P4 processor with Wi-Fi 6, Ethernet with PoE. Its form follows professional control-system panels.

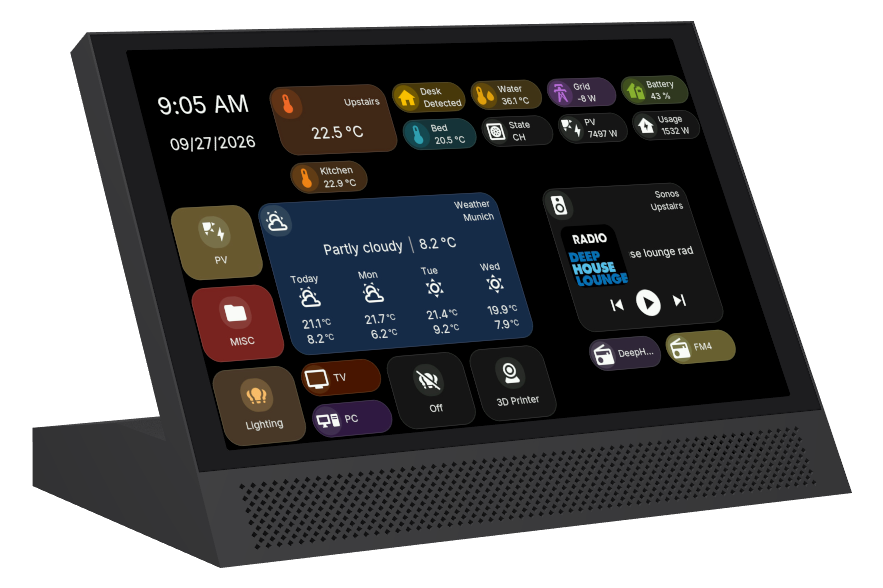

10.1 Inch Desktop Panel
The same quality Waveshare display, one size up. Same specifications, more real estate for tiles.
8" and 10" Inwall Panels

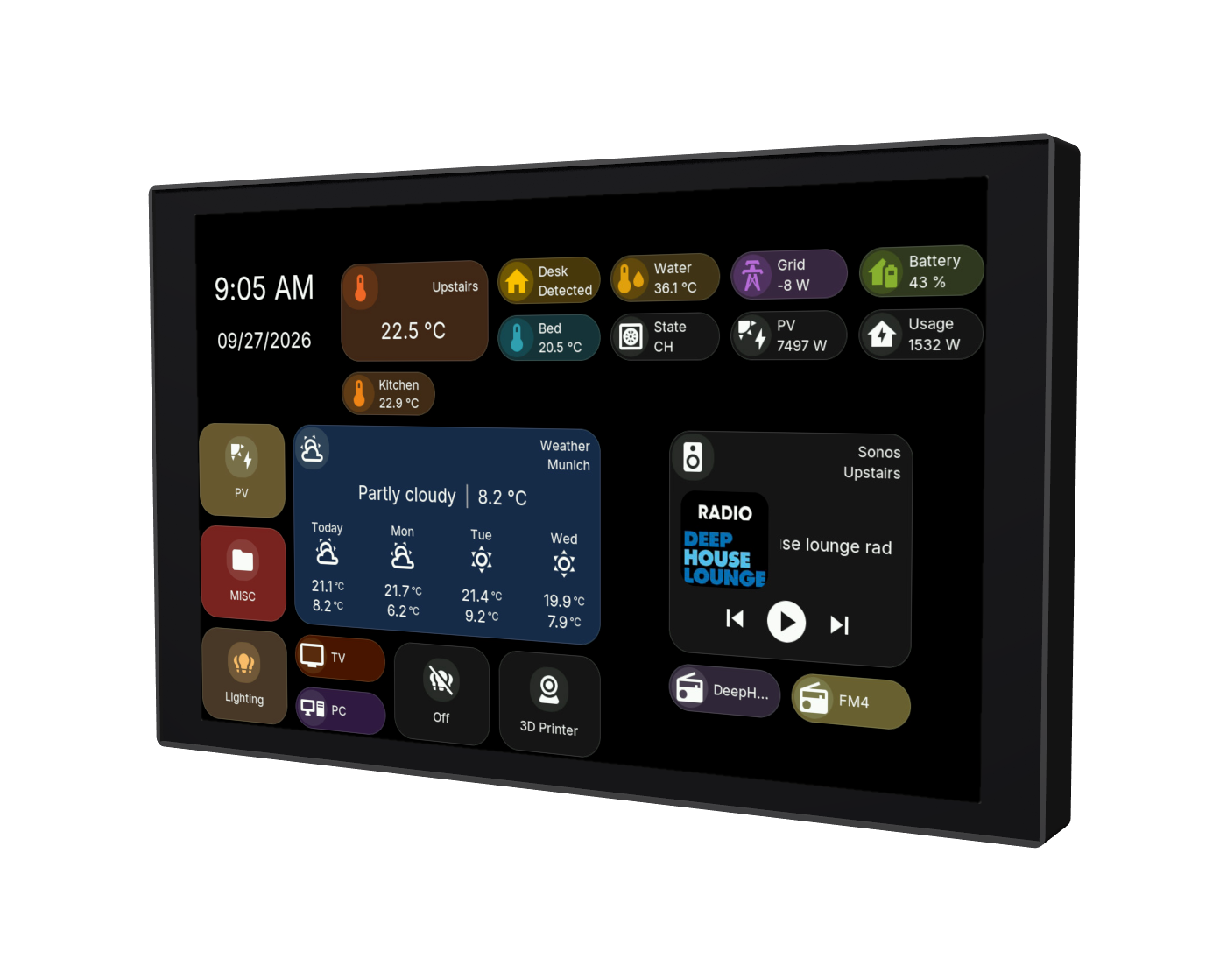

8 Inch Inwall Panel
The 8 inch Waveshare display set flush in the wall, with the ESP32-P4 board in a pod behind it. One cable: PoE power and network.

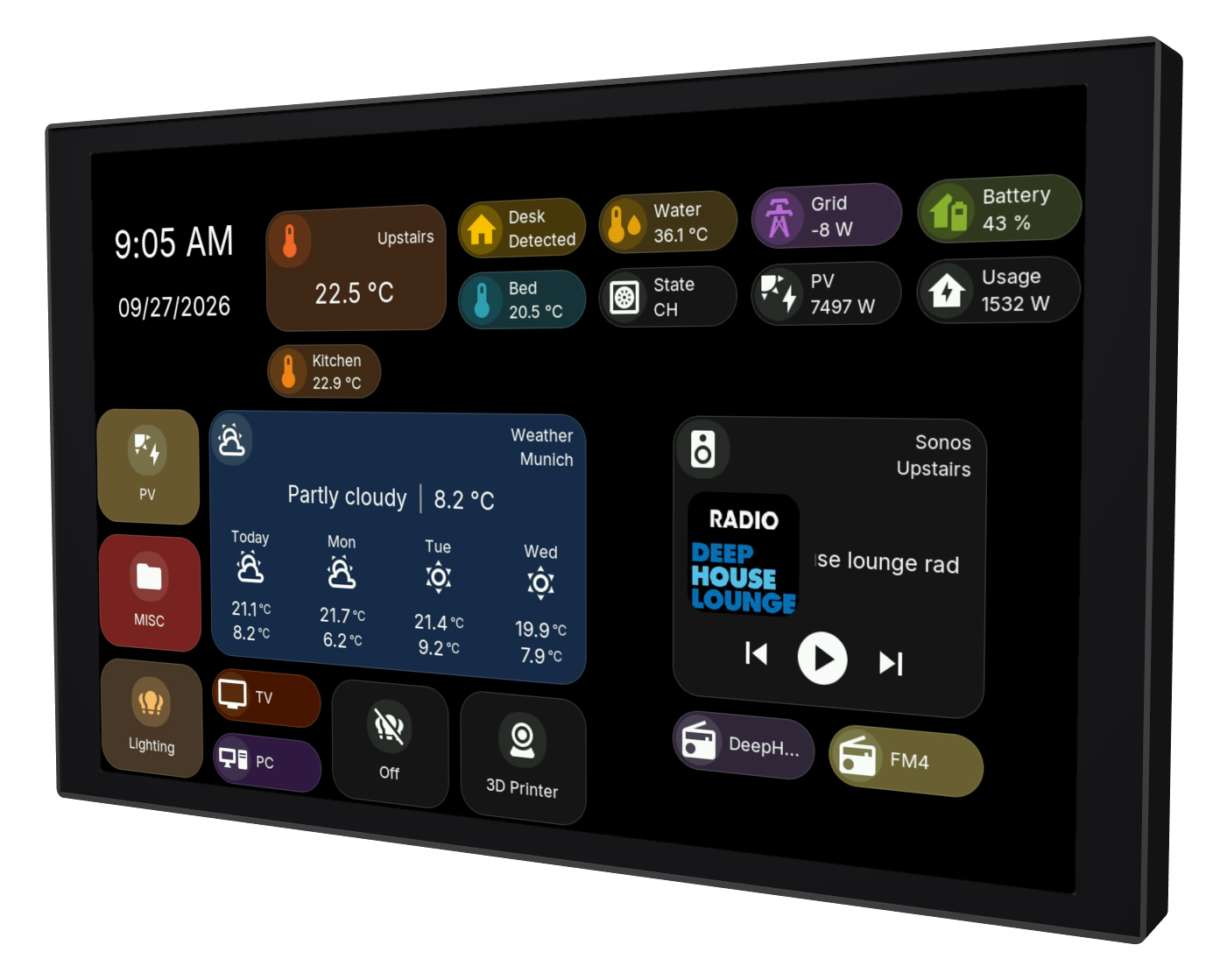

10.1 Inch Inwall Panel
The 10.1 inch display, flush in the wall. Same board, same single PoE cable, more real estate for tiles.

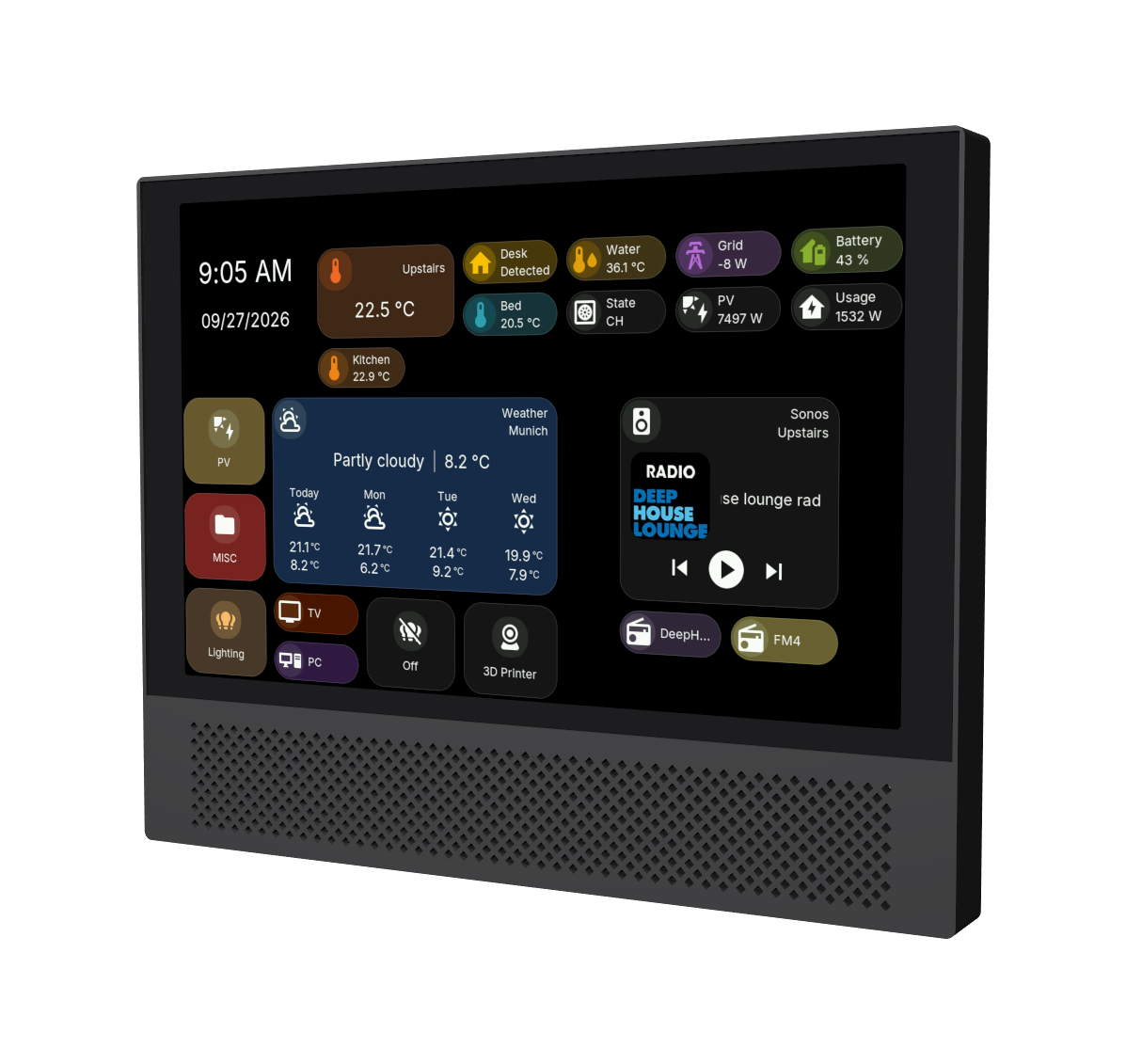

8 Inch Inwall Panel with Voice Assist
An 8 inch voice assist enabled inwall panel featuring a 2 microphone array with echo cancelation and a front firing speaker. This panel includes an integrated microwave presence sensor with adjustable distance detection to wake the panel on approach.

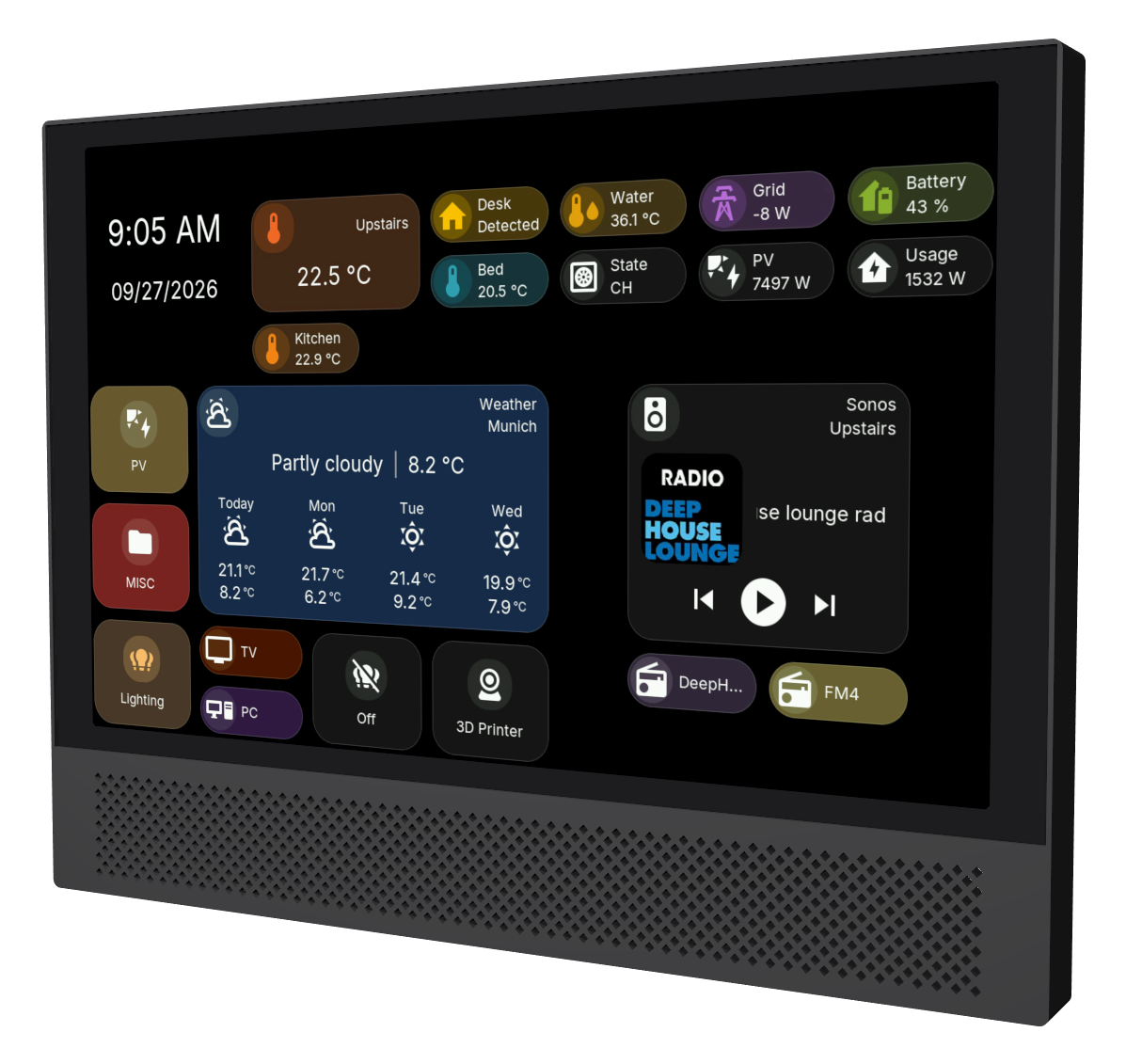

10.1 Inch Inwall Panel with Voice Assist
A 10.1 inch voice assist enabled inwall panel featuring a 2 microphone array with echo cancelation and a front firing speaker. This panel includes an integrated microwave presence sensor with adjustable distance detection to wake the panel on approach.
Integration Modules
Introducing a new type of control philosophy for Home Assistant. Integration modules are smart interfaces running their own code. When using lower power platforms like Raspberry Pi, the modules pick up the processing load of communicating with the devices. They essentially allow products that have a control protocol to become smart devices that Home Assistant can discover and configure with MQTT.

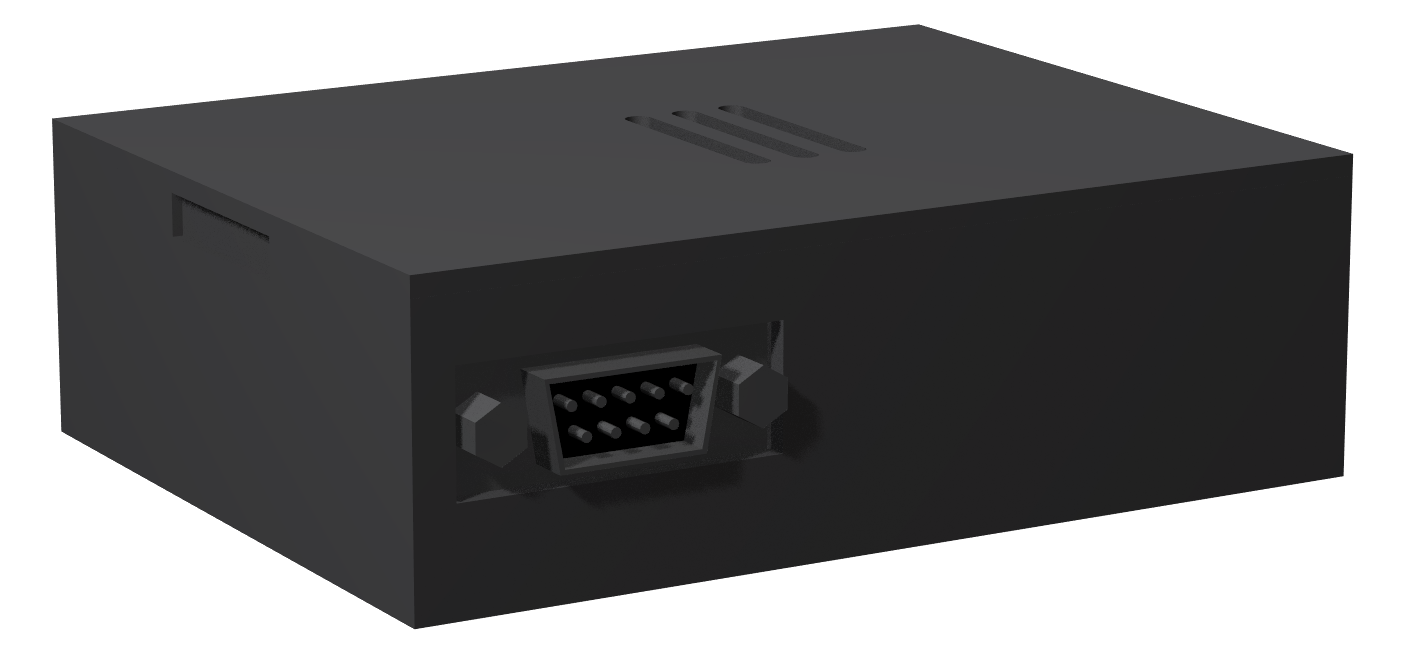

Serial Integration Modules
Supports Ethernet PoE and Wi-Fi 6. Utilizes a male DB9 on the back that mimics a serial port on a PC. This is much more than a serial server. The integration module is a complete auto discovery bridge with code for specific products.
ESP32-P4 Processor. Versions for RS-232, RS-422 and RS-485
ESPHome Based
Small Form Factor. About 73 by 95 by 30 mm
Ideal for projectors, receivers, matrix switches or any device with a serial port

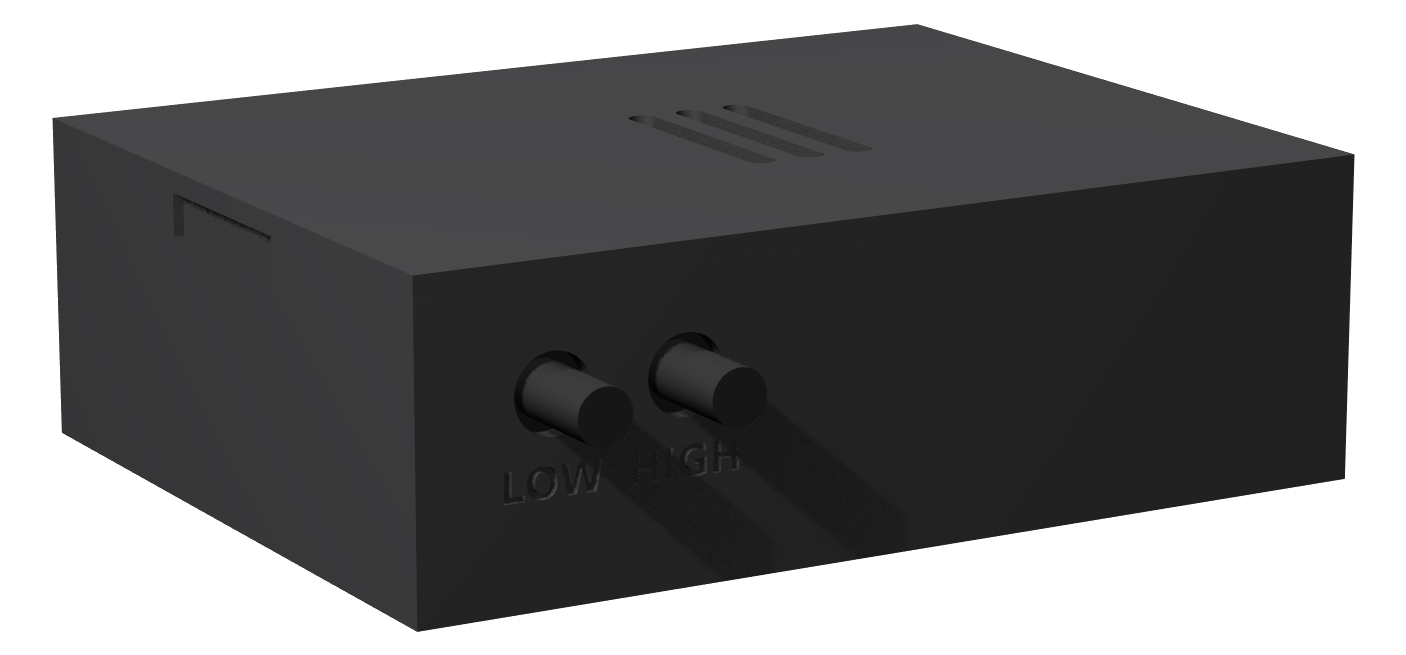

HVAC Filter Sensor
Utilizes a commercial quality Sensirion SDP810 differential pressure sensor for accurate pressure reading.
ESP32-P4 Processor
Utilizes High and Low pressure ports and includes two 8" probes and tubing
Uses ESPHome and compares the pressure from before and after the filter to determine when to change the filter
Reports straight into Home Assistant
All products are in development. Specifications can change before release. The store lists what is available, and the YouTube channel shows the rest first.
FAQ
Frequently asked questions
Short answers. If yours is not here, ask Wizodd or send us a note.
Hardware and software for the Home Assistant community: desktop and in-wall touch panels, integration modules and solutions designed for the people who use them. We are a controls company. Lighting is one of the things the products control, not what we are.
That is the whole point. The panels run community dashboards such as HomeTiles, and the integration modules are built around boards that report straight into Home Assistant over PoE, Ethernet or WiFi 6.
Off-the-shelf boards you can buy today: Waveshare 8 inch and 10 inch DSI touch displays and the ESP32-P4 WiFi 6, PoE and Ethernet board. The panels and integration modules are 3D printed in charcoal matte PLA.
The products are in development. The store at shop.wizodd.us lists what is available at any time, and the YouTube channel is where you see the rest first.
Please do. Wizodd builds the things that are not practical for large manufacturers to make, based on what the community says it needs. Tell us through the contact page.
Tell us what your smart home is missing.
Wizodd builds what the community asks for. Watch the videos and say what you would like to see next.
